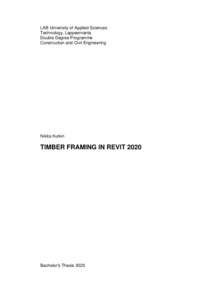

Timber framing in Revit 2020
Kurkin, Nikita (2020)
2020
All rights reserved. This publication is copyrighted. You may download, display and print it for Your own personal use. Commercial use is prohibited.
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-202002092193
https://urn.fi/URN:NBN:fi:amk-202002092193
Tiivistelmä
The purpose of this thesis was to solve the problem of creating a timber framing of the walls of the 4-level residential building using Revit by Autodesk for Maltese company Integrated BIM in the already existing model made by the team. The house is located in Los Angeles, CA, USA. The model was made in order to help builders on the building site.
The second purpose was to find the most convenient, rational and suitable approach for creating timber framed constructions for residential and low-rise commercial buildings in BIM basing on Revit 2020 without any experience under tight deadlines.
The thesis consists of a theoretical and practical part. In the theoretical part the main idea of BIM was considered as well as the usage of BIM concepts in timber framing. Internet, articles and books helped to handle with that.
In the practical part research on the best extensions for timber framing in Revit was done. Also, a deep review and comparison in a form of the table were made.
As the result, the most suitable option to cope with the problem was defined and applied to the study case.
The second purpose was to find the most convenient, rational and suitable approach for creating timber framed constructions for residential and low-rise commercial buildings in BIM basing on Revit 2020 without any experience under tight deadlines.
The thesis consists of a theoretical and practical part. In the theoretical part the main idea of BIM was considered as well as the usage of BIM concepts in timber framing. Internet, articles and books helped to handle with that.
In the practical part research on the best extensions for timber framing in Revit was done. Also, a deep review and comparison in a form of the table were made.
As the result, the most suitable option to cope with the problem was defined and applied to the study case.
