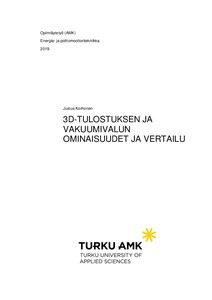

3D-tulostuksen ja vakuumivalun ominaisuudet ja vertailu
Korhonen, Justus (2019)
Korhonen, Justus
2019
All rights reserved. This publication is copyrighted. You may download, display and print it for Your own personal use. Commercial use is prohibited.
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-202001161331
https://urn.fi/URN:NBN:fi:amk-202001161331
Tiivistelmä
Tässä opinnäytetyössä tutustuttiin ja vertailtiin 3D-tulostuksen ominaisuuksia vakuumivaluun. 3D-tulostustekniikoista tarkastelussa olivat stereolitografia, lasersintraus ja metallin lasersintraus. Työ toteutettiin Ajatec Oy:lle, joka hyödyntää kyseisiä tekniikoita toiminnassaan päivittäin.
Teoriaosuudessa käydään läpi eri tekniikoiden perusteet, toimintaperiaatteet ja historia. Osiossa havainnollistetaan stereolitografian nestemäisen hartsin kovetus ultraviolettilaserilla, lasersintrausten pulverin kovettaminen hiilidioksidilaserin avulla ja vakuumivalun valuprosessi valukammiossa.
Loppuosuudessa valmistustekniikoita vertailtiin keskenään niiden keskeisimpien ominaisuuksien perusteella. Työssä todettiin tekniikan paremmuuden riippuvan paljolti haluttavasta materiaalista, sen pinnanlaadusta ja tuotantomääristä. 3D-tulostuksessa pinnanlaatu on selkeästi heikompi, kun taas valamalla ei muotista johtuen saada tehtyä esimerkiksi tiettyjä kartiomaisia muotoja. Karkeasti lajiteltuna metallit soveltuvat paremmin 3D-tulostukseen, kun taas muovit vakuumivaluun. This thesis explored and compared the properties of 3D-printing to vacuum casting. The 3D-printing techniques were stereolithography, laser sintering, and metal laser sintering. The thesis was carried out for Ajatec Oy, which utilizes these technologies on its daily basis.
The theory section includes the basics of different technologies, how they work and what is their history. The section also illustrates the curing of liquid resin of stereolithography with an ultraviolet laser, the curing of powder for laser sintering with a carbon dioxide laser, and the vacuum casting process.
In the end, the manufacturing techniques were compared based on their key characteristics. In this thesis, the superiority of the technology was found to be largely depended on the desired material, its surface quality and production volumes. In 3D-printing the surface quality is clearly lower, while vacuum casting due to the mold, for example certain conical shapes cannot be made. When roughly sorted, metals are better suited for 3D printing, while plastics are more suitable for vacuum casting.
Teoriaosuudessa käydään läpi eri tekniikoiden perusteet, toimintaperiaatteet ja historia. Osiossa havainnollistetaan stereolitografian nestemäisen hartsin kovetus ultraviolettilaserilla, lasersintrausten pulverin kovettaminen hiilidioksidilaserin avulla ja vakuumivalun valuprosessi valukammiossa.
Loppuosuudessa valmistustekniikoita vertailtiin keskenään niiden keskeisimpien ominaisuuksien perusteella. Työssä todettiin tekniikan paremmuuden riippuvan paljolti haluttavasta materiaalista, sen pinnanlaadusta ja tuotantomääristä. 3D-tulostuksessa pinnanlaatu on selkeästi heikompi, kun taas valamalla ei muotista johtuen saada tehtyä esimerkiksi tiettyjä kartiomaisia muotoja. Karkeasti lajiteltuna metallit soveltuvat paremmin 3D-tulostukseen, kun taas muovit vakuumivaluun.
The theory section includes the basics of different technologies, how they work and what is their history. The section also illustrates the curing of liquid resin of stereolithography with an ultraviolet laser, the curing of powder for laser sintering with a carbon dioxide laser, and the vacuum casting process.
In the end, the manufacturing techniques were compared based on their key characteristics. In this thesis, the superiority of the technology was found to be largely depended on the desired material, its surface quality and production volumes. In 3D-printing the surface quality is clearly lower, while vacuum casting due to the mold, for example certain conical shapes cannot be made. When roughly sorted, metals are better suited for 3D printing, while plastics are more suitable for vacuum casting.
