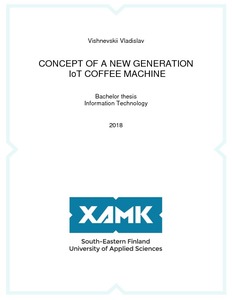

Concept of a new generation IoT coffee machine
Vishnevskii, Vladislav (2018)
Kaakkois-Suomen ammattikorkeakoulu
2018
Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-201803263763
https://urn.fi/URN:NBN:fi:amk-201803263763
Tiivistelmä
In this thesis the prospect of creating a new IoT coffee machine was researched. The idea based on finding the jug content and implementing monitoring for the users. Features, made possible by the presence of this information were studied. Such new functionality included, was not limited to a new portion of coffee creation. With new data, the coffee machine would be safe from overflowing the jug.
To find a method for the coffee jug content detection many sensors and methods were studied and some tested. The trial and error was the main method of acquiring information followed by reading documentation on different components and libraries. This was caused by the very practical focus of the study.
The developed detection method based on ambient light sensors and on the fact that coffee does not pass the light. Thus, it is possible to identify when there is coffee in front of the sensors and when not. With an array of sensors, it is possible to get a reasonably accurate approximation and use it for many purposes.
Based on the study a proof of concept was built. It has been based on the ESP8266 12-E board, quite similar to Arduino UNO. This thesis had the full process of development described as well as building instructions. The proof of concept creation also required work with a web server, the creation of web interfaces, usage of EEPROM, modeling and printing the casing on a 3D printer.
As a result of all studies, a concept of a new generation IoT coffee machine was developed. This included recommendations on an operation principle, casing, web interface, method of resource supply, installation and usage. A speculation on the reasons why the device could be popular was also introduced as well as all the advantages it would have over traditional coffee machines.
